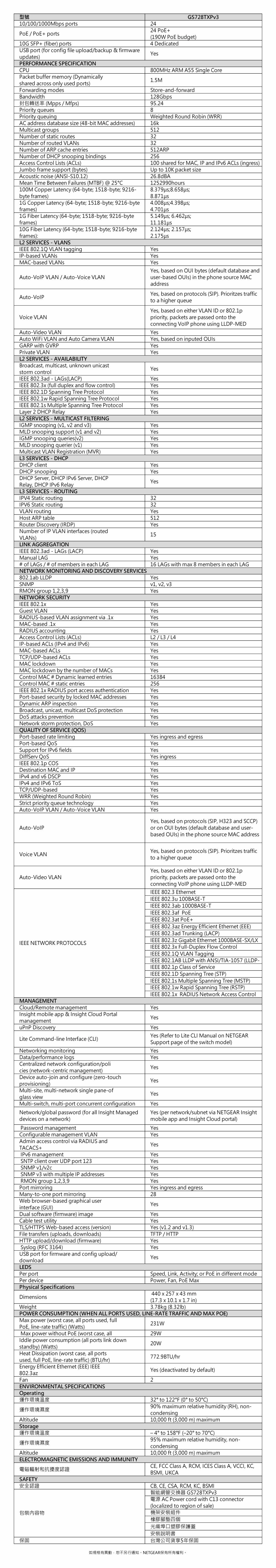

技術規格
Features | S3300-28X-PoE+ |
10/100/1000Mbps ports | 24 |
10-Gigabit ports | 4 Dedicated (2 Copper and 2 Fiber) |
PERFORMANCE SPECIFICATION | |
Forwarding modes | |
Bandwidth | 128Gbps |
Packet Forwarding Rate (64 byte packet size) (Mfps or Mpps) | 95.2 |
Priority queues | 8 |
Priority queuing | Weighted Round Robin (WRR) |
MAC address database size | 16k media access control (MAC) addresses |
Addressing | 48-bit MAC address |
Multicast groups | 512 |
Number of static routes | 32 |
Number of routed VLANs | 15 |
Number of ARP cache entries | 512 |
Number of DHCP snooping bindings | 8K |
Access Control Lists (ACLs) | 100 shared for MAC, IP and IPv6 ACLs |
Jumbo frame support (bytes) | Up to 9,216 bytes packet size |
Acoustic noise (ANSI-S10.12) | 36.8dBA |
Mean Time Between Failures (MTBF) @ 25°C | 147,965 hours |
L2 SERVICES - VLANS | |
IEEE 802.1Q VLAN tagging | Yes |
IP-based VLANs | Yes |
MAC-based VLANs | Yes |
Auto-Voice VLAN | Based on phones OUI bytes (internal database, or user-maintained) or protocols (SIP, H323 and SCCP) |
Auto-Video VLAN | Yes |
L2 SERVICES - AVAILABILITY | |
IEEE 802.3ad - LAGs | Yes |
Broadcast storm control | Yes |
IEEE 802.3x (full duplex and flow control) | Yes |
IEEE 802.1D Spanning Tree Protocol | Yes |
IEEE 802.1w Rapid Spanning Tree Protocol | Yes |
IEEE 802.1s Multiple Spanning Tree Protocol | Yes |
Layer 2 DHCP Relay | Yes |
L2 SERVICES - MULTICAST FILTERING | |
IGMP snooping (v1, v2 and v3) | Yes |
MLD snooping support (v1 and v2) | Yes |
IGMP snooping queries | Yes |
Block unknown multicast | Yes |
Multicast VLAN Registration (MVR) | Yes |
L3 SERVICES - DHCP | |
DHCP client | Yes |
DHCP snooping | Yes |
L3 SERVICES - IPV4 ROUTING | |
Static routing | 32 |
Host ARP table | 512 |
Router Discovery (IRDP) | Yes |
LINK AGGREGATION | |
IEEE 802.3ad - LAGs | Yes |
Manual LAG | Yes |
# of LAGs / # of members in each LAG | 26 LAGs with max 8 members in each LAG |
STACKING | |
Stacking Interface | 10G SFP+ or 10GBASE-T copper (both at 10G speeds only) |
Max. number of switches within a stack | up to 6 |
Stacking bandwidth | 40G bi-directional (two 10G stacking ports per switch) |
Mixed stacking | S3300 switches can stack with M4300 select 10G models (M4300-12X12F and M4300-24X) running S3300 software. Upgrading procedures and restrictions apply: please refer to the “Mixed Stacking with M4300” Application Note. |
NETWORK MONITORING AND DISCOVERY SERVICES | |
802.1ab LLDP | Yes |
SNMP | v1, v2c, v3 |
RMON group 1,2,3,9 | Yes |
NETWORK SECURITY | |
IEEE 802.1x | Yes |
Guest VLAN | Yes |
RADIUS-based VLAN assignment via .1x | Yes |
MAC-based .1x | Yes |
RADIUS accounting | Yes |
Access Control Lists (ACLs) | L2 / L3 / L4 |
IP-based ACLs (IPv4 and IPv6) | Yes |
MAC-based ACLs | Yes |
TCP/UDP-based ACLs | Yes |
MAC lockdown | Yes |
MAC lockdown by the number of MACs | Yes |
IEEE 802.1x RADIUS port access authentication | Yes |
Port-based security by locked MAC addresses | Yes |
IP source guard | Yes |
Dynamic ARP inspection | Yes |
Dynamic learned entries | 600 |
Static entries | 20 |
Network storm protection, DoS | Yes |
Broadcast, unicast, multicast DoS protection | Yes |
DoS attacks prevention | Yes |
QUALITY OF SERVICE (QOS) | |
Access Lists | Yes |
L2 MAC, L3 IP and L4 port ACLs | Yes |
Port-based rate limiting | Egress only |
Port-based QoS | Yes |
Support for IPv6 fields | Yes |
DiffServ QoS | Yes |
IEEE 802.1p COS | Yes |
Destination MAC and IP | Yes |
IPv4 and v6 DSCP | Yes |
TCP/UDP-based | Yes |
WRR (Weighted Round Robin) | Yes |
Strict priority queue technology | Yes |
Timing and Synchronization for Time-Sensitive Applications (IEEE 802.1AS) | Yes |
Stream Reservation Protocol (SRP) (IEEE 802.1Qat) | Yes |
Forwarding and Queuing for Time-Sensitive Streams (IEEE 802.1Qav) | Yes |
Audio Video Bridging Systems (IEEE 802.1BA) | Yes |
Auto-VoIP | Yes, based on protocols (SIP, H323 and SCCP) or on OUI bytes (default database and user-based OUIs) in the phone source MAC address |
Auto-Video | Yes (up to 24 ports simultaneously) |
IEEE NETWORK PROTOCOLS | • IEEE 802.3 Ethernet • IEEE 802.3i 10BASE-T • IEEE 802.3u 100BASE-T • IEEE 802.3ab 1000BASE-T • IEEE 802.1Q VLAN Tagging • IEEE 802.3x Full-Duplex Flow Control • IEEE 802.1Qav • IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX • IEEE 802.3ae 10-Gigabit Ethernet Over Fiber (10GBASE-SR, 10GBASE-LR, 10GBASE-ER, 10GBASE-LX4) • IEEE 802.3an 10GBASE-T 10 Gbit/s Ethernet Over Copper Twisted Pair Cable • IEEE 802.3ad Trunking (LACP) • IEEE 802.1AB LLDP with ANSI/TIA-1057 (LLDP-MED) • IEEE 802.1p Class of Service • IEEE 802.1Qat • IEEE 802.1D Spanning Tree (STP) • IEEE 802.1s Multiple Spanning Tree (MSTP) • IEEE 802.1w Rapid Spanning Tree (RSTP) • IEEE 802.1x RADIUS Network Access Control • IEEE 802.1BA • IEEE 802.1AS |
MANAGEMENT | |
Password management | Yes |
Configurable management VLAN | Yes |
Admin access control via RADIUS and TACACS+ | Yes |
Web-based graphical user interface (GUI) | Yes |
Smart Control Center (SCC) for multi-switch management | Yes |
IPv6 management | Yes |
Dual software (firmware) image | Yes |
Dual configuration file | Yes |
SNTP client over UDP port 123 | Yes |
SNMP v1/v2c | Yes |
SNMP v3 with multiple IP addresses | Yes |
RMON group 1,2,3,9 | Yes |
Port mirroring | Yes |
Many-to-one port mirroring | Yes |
Cable test utility | Yes |
SSL/HTTPS and TLS v1.0 for Web-based access | Yes |
File transfers (uploads, downloads) | TFTP / HTTP |
HTTP upload/download (firmware) | Yes |
Syslog (RFC 3164) | Yes |
USB port for firmware and config upload/ download | Yes |
LEDS | |
Per port | Speed, Link, Activity |
Per device | Power, Fan, and PoE (GS728TXP and GS752TXP only) |
POE CONFIGURATION | |
Number of PoE+ ports | 24 |
Total PoE power budget (watts), without RPS | 195W |
RPS support: RPS mode, max. PoE power budget with RPS | 720W |
PHYSICAL SPECIFICATIONS | |
Dimensions | 440 x 257 x 43mm |
Weight | 3.77kg |
POWER CONSUMPTION (WHEN ALL PORTS USED, LINE-RATE TRAFFIC AND MAX POE) | |
Worst case, all ports used, line-rate traffic | 748.18W |
ENVIRONMENTAL SPECIFICATIONS | |
Operating | |
Operating temperature | 32° to 122°F (0° to 50°C) |
Humidity | 90% maximum relative humidity, non-condensing |
Altitude | 10,000 ft (3,000 m) maximum |
Storage | |
Storage temperature | – 4° to 158°F (–20° to 70°C) |
Humidity | 95% maximum relative humidity, non-condensing |
Altitude | 10,000 ft (3,000 m) maximum |
ELECTROMAGNETIC EMISSIONS AND IMMUNITY | |
Certifications | CE: EN 55032:2012+AC:2013/CISPR 32:2012, EN 61000-3-2:2014,Class A, EN 61000-3-3:2013,EN 55024:2010 UL listed (UL 1950)/cUL IEC 950/EN 60950 CE LVD: EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 RCM (AS/NZS) 60950.1:2015 CCC (China Compulsory Certificate): GB4943.1-2011; YD/T993-1998; GB/T9254-2008 (Class A) BSMI: CNS 14336-1 |
SAFETY | |
Certifications | CB report / certificate IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013 UL listed (UL 1950)/cUL IEC 950/EN 60950 CE LVD: EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 RCM (AS/NZS) 60950.1:2015 CCC (China Compulsory Certificate): GB4943.1-2011; YD/T993-1998; GB/T9254-2008 (Class A) BSMI: CNS 14336-1 |
保固 | 台灣公司貨享5年保固 |
如規格有異動,恕不另行通知 © 2019著作權為NETGEAR所有。NETGEAR並保有所有權利。
