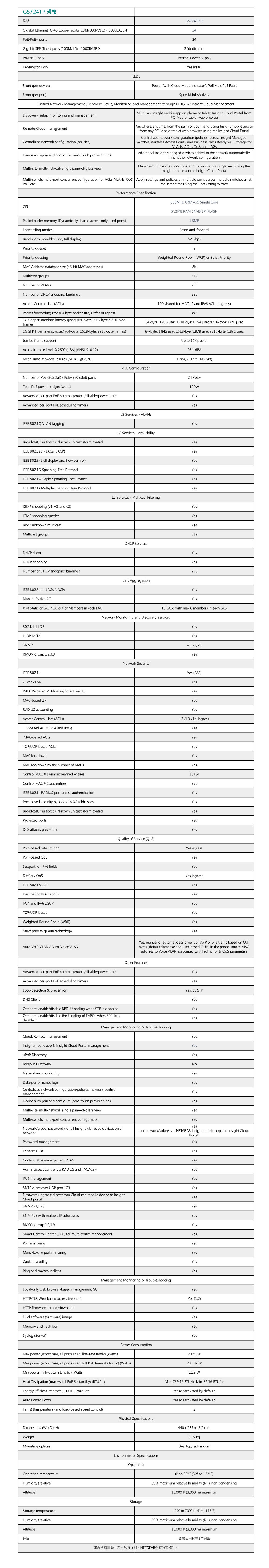

| Features |
GS724TPv2 |
| 10M/100M/1G RJ-45 copper ports |
24 |
| PoE / PoE+ ports |
24 PoE+ (190W PoE budget) |
| 1G SFP (fiber) ports |
2 (dedicated) |
| PERFORMANCE SPECIFICATION |
|
| CPU |
500 Mhz MIPS-4KEc CPU 128MB RAM 32MB SPI FLASH |
| Packet buffer memory (Dynamically shared across only used ports) |
0.5 MB |
| Forwarding modes |
Store-and-forward |
| Bandwidth |
52 Gbps |
| Priority queues |
8 |
| Priority queuing |
Weighted Round Robin (WRR) and Strict Priority |
| MAC Address database size (48-bit MAC addresses) |
8K |
| Multicast groups |
128 |
| Number of VLANs |
64 |
| Number of DHCP snooping bindings |
256 |
| Access Control Lists (ACLs) |
100 shared for MAC, IP and UDP/TCP ACLs (ingress) |
| Packet forwarding rate (64 byte packet size) (Mpps) |
38.68 |
| Jumbo frame support |
Up to 9K packet size |
| Acoustic noise level @ 25°C (dBA) (ANSI-S10.12) |
32.4 dBA |
| Mean Time Between Failures (MTBF) @ 25°C |
1,051,375 hours |
| 100M Copper Latency(64-byte; 1518-byte; 9216-byte frames) |
6.38µs ; 6.267µs ; 6.059µs |
| 1G Copper Latency(64-byte; 1518-byte; 9216-byte frames) |
3.749µs ; 4.675µs ; 3.762µs |
| 1G Fiber Latency (64-byte; 1518-byte; 9216-byte frames) |
3.129µs ; 4.213µs ; 4.197µs |
| L2 SERVICES - VLANS |
|
| IEEE 802.1Q VLAN tagging |
Yes |
| Auto-VoIP VLAN / Auto-Voice VLAN |
Yes, manuel or automatic assigment of VoIP phone traffic based on OUI bytes (default database and user-based OUIs) in the phone source MAC address to Voice VLAN associated with high priority QoS parameters |
| L2 SERVICES - AVAILABILITY |
|
| Broadcast, multicast, unknown unicast storm control |
Yes |
| IEEE 802.3ad - LAGs (LACP) |
Yes |
| IEEE 802.3x (full duplex and flow control) |
Yes |
| IEEE 802.1D Spanning Tree Protocol |
Yes |
| IEEE 802.1w Rapid Spanning Tree Protocol |
Yes |
| IEEE 802.1s Multiple Spanning Tree Protocol |
Yes |
| L2 SERVICES - MULTICAST FILTERING |
|
| IGMP snooping (v1, v2 and v3) |
Yes |
| IGMP snooping querier |
Yes |
| DHCP SERVICES |
|
| DHCP client |
Yes |
| DHCP snooping |
Yes |
| LINK AGGREGATION |
|
| IEEE 802.3ad - LAGs (LACP) |
Yes |
| Manual Static LAG |
Yes |
# of Static or LACP LAGs
# of Members in each LAG |
8 LAGs with max 8 members in each LAG |
| NETWORK MONITORING AND DISCOVERY SERVICES |
|
| 802.1ab LLDP |
Yes |
| SNMP |
v1, v2c, v3 |
| RMON group 1,2,3,9 |
Yes |
| NETWORK SECURITY |
|
| IEEE 802.1x |
Yes (EAP) |
| Guest VLAN |
Yes |
| RADIUS-based VLAN assignment via .1x |
Yes |
| RADIUS accounting |
Yes |
| Access Control Lists (ACLs) |
L2 / L3 / L4 ingress |
| IP-based ACLs (IPv4) |
Yes |
| MAC-based ACLs |
Yes |
| TCP/UDP-based ACLs |
Yes |
| MAC lockdown |
Yes |
| MAC lockdown by the number of MACs |
Yes |
| Control MAC # Dynamic learned entries |
600 |
| Control MAC # Static entries |
20 |
| IEEE 802.1x RADIUS port access authentication |
Yes |
| Port-based security by locked MAC addresses |
Yes |
| Broadcast, multicast, unknown unicast storm control |
Yes |
| DoS attacks prevention |
Yes |
| QUALITY OF SERVICE (QOS) |
|
| Port-based rate limiting |
Yes egress |
| Port-based QoS |
Yes |
| DiffServ QoS |
Yes ingress |
| IEEE 802.1p COS |
Yes |
| Destination MAC and IP |
Yes |
| IPv4 DSCP |
Yes |
| IPv4 ToS |
Yes |
| TCP/UDP-based |
Yes |
| Weighted Round Robin (WRR) |
Yes |
| Strict priority queue technology |
Yes |
| Auto-VoIP VLAN / Auto-Voice VLAN |
Yes, manuel or automatic assigment of VoIP phone traffic based on OUI bytes (default database and user-based OUIs) in the phone source MAC address to Voice VLAN associated with high priority QoS parameters |
| IEEE NETWORK PROTOCOLS |
• IEEE 802.3 Ethernet
• IEEE 802.3u 100BASE-T
• IEEE 802.1Q VLAN Tagging
• IEEE 802.3ab 1000BASE-T
• IEEE 802.3af PoE
• IEEE 802.3at PoE+
• IEEE 802.3az Energy Efficient Ethernet (EEE)
• IEEE 802.3ad Trunking (LACP)
• IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX
• IEEE 802.3x Full-Duplex Flow Control
• IEEE 802.1AB LLDP with ANSI/TIA-1057 (LLDP-MED)
• IEEE 802.1p Class of Service
• IEEE 802.1D Spanning Tree (STP)
• IEEE 802.1s Multiple Spanning Tree (MSTP)
• IEEE 802.1w Rapid Spanning Tree (RSTP)
• IEEE 802.1x RADIUS Network Access Control |
| MANAGEMENT |
|
| Password management |
Yes |
| Configurable management VLAN |
Yes |
| Admin access control via RADIUS and TACACS+ |
Yes |
| SNTP client over UDP port 123 |
Yes |
| SNMP v1/v2c |
Yes |
| SNMP v3 with multiple IP addresses |
Yes |
| RMON group 1,2,3,9 |
Yes |
| Port mirroring |
Yes |
| Many-to-one port mirroring |
25 |
| Web browser-based graphical user interface (GUI) |
Yes |
| Smart Control Center (SCC) for multi-switch management |
Yes |
| Dual software (firmware) image |
Yes |
| Cable test utility |
Yes |
| HTTPS/TLS Web-based access (version) |
Yes (v1.0) |
| File transfers (uploads, downloads) |
TFTP / HTTP |
| HTTP upload/download (firmware) |
Yes |
| Syslog (RFC 3164) |
Yes |
| LEDS |
|
| Per port |
Speed, Link, Activity |
| Per device |
Power and Fan |
| PHYSICAL SPECIFICATIONS |
|
| Dimensions (W x D x H) |
440 x 204 x 43 mm (17.3 x 8 x 1.7 in) |
| Weight |
3.15 kg (6.96 lb) |
| POWER CONSUMPTION |
|
| Max power (worst case, all ports used, full PoE, line-rate traffic) (Watts) |
228.53 W |
| Max power without PoE (worst case, all ports used, line-rate traffic) (Watts) |
21.62 W |
| Heat Dissipation (worst case, all ports used, full PoE, line-rate traffic) (BTU/hr) |
780.20 BTU/hr |
| Heat Dissipation without PoE (worst case, all ports used, line-rate traffic) (BTU/hr) |
73.8 BTU/hr |
| Energy Efficient Ethernet (EEE) IEEE 802.3az |
Yes (deactivated by default) |
| Short Cable Power Reduction |
Yes (deactivated by default) |
| Auto Power Down |
Yes (deactivated by default) |
| Fan |
2 |
| ENVIRONMENTAL SPECIFICATIONS |
|
| Operating |
|
| Power |
Internal 100-240VAC 50-60Hz |
| Operating temperature |
0° to 50°C (32° to 122°F) |
| Humidity (relative) |
90% maximum relative humidity (RH), non-condensing |
| Altitude |
10,000ft (3,000m) maximum |
| Storage |
|
| Storage temperature |
–20° to 70°C (– 4° to 158°F) |
| Humidity (relative) |
95% maximum relative humidity, non-condensing |
| Altitude |
10,000ft (3,000m) maximum |
| ELECTROMAGNETIC EMISSIONS AND IMMUNITY |
|
| Certifications |
CE: EN 55032:2012+AC:2013/CISPR 32:2012, EN 61000-3-2:2014, Class A, EN 61000-3-3:2013, EN 55024:2010
VCCI : VCCI-CISPR 32:2016, Class A
RCM: AS/NZS CISPR 32:2013 Class A
CCC: GB4943.1-2011; YD/T993-1998; GB/T9254-2008 (Class A)
FCC: 47 CFR FCC Part 15, Class A, ANSI C63.4:2014
ISED: ICES-003:2016 Issue 6, Class A, ANSI C63.4:2014
BSMI: CNS 13438 Class A |
| SAFETY |
|
| Certifications |
CB report / certificate IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013
UL listed (UL 1950)/cUL IEC 950/EN 60950
CE LVD: EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013
RCM (AS/NZS) 60950.1:2015
CCC (China Compulsory Certificate): GB4943.1-2011; YD/ T993-1998; GB/T9254-2008 (Class A)
BSMI: CNS 14336-1 |
